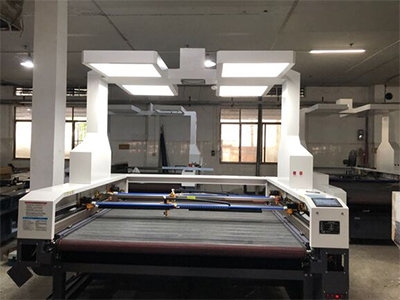

CCD CAMERA ORIENTED LASER CUTTING MACHINE
CCD CAMERA ORIENTED LASER CUTTING MACHINE
APPLICABLE MATERIAL
Leather wool fabric, Cloth, Plexiglass, Rubber, Wooden Products, Woven Labels, Mdf, Acrylic etc.
APPLICABLE INDUSTRY
CCD Machine is applicable to trademark woven mark, embroidery labels. The Wearing lather, Cloth toys, Computer embrodery cutting, Templet cutting paper product industry
CONFIGURATION
- Auto Camera Oriented capture photo
- Any angle & direcon idenfy
- With combine funcon, big area cung possible
- High cung precision, Nobum, No yellow mark
- Easy/Friendly operaon system
- Perfect opcal system
- Interacve three types of data ( u disk, pc, internet)
- Soware support mulple formats : AI, PIT, JPEG, DXF,
- DST Seamless Compability with Corel Draw Card and Other Graphics Soware.
| TECHNICAL PARAMETERS | |
|---|---|
| Model | ML1080CCD |
| Laser tube | CO² EFR |
| Laser Power | 60W/80W/100W |
| Cung Speed | 0-300mms |
| Engraving Speed | 0-500mm/s |
| Repaang Precision | +/- 0.05 |
| Working Area | 1400mm x 1000mm |
| Power Supply | 1PH+1AC /220V /15A /50-60Hz |
| Machine Size / Packing Size | 1900x1500x1100mm / 2000x1600x1230mm |
| Weight | Around Net. W 350Kg, GW 380Kg |
| Environment Required | Temprature 15⁰-35⁰ Humidity 30% (Non condensing) |
| Chiller | Industrial Chiller CW5000 |
